Meccano Models
I've been a Meccano enthusiast since my childhood. My favourite models involve mechanisms.
Videos
This model was based on the VEX Robotics Pick & Drop Ball Machine from HEXBUG. This Meccano version was designed and built by me.
MW Models Model Plan 62. Designed by Mike Cuff. Constructed by Keith Edwards.
The marbles are lifted by an Archimedean screw made up from over 100 fishplates on a 11.5" screwed rod.
The diaphragms are made from a pair of rubber gloves stretched over 5.5" circular girders.
The model works incredibly reliably. During the making of this video not a single marble was shed.
Meccano Ping Pong Baller Roller constructed by me based on an original design by Chris Shute.
This model is an enhanced version of the Meccano set 10 model. It has the same dimensions but has had additional cross-bracing added along with a floor at the first level.
Height: 2400mm Base: 950mm square
No. of parts used: Far too many to count

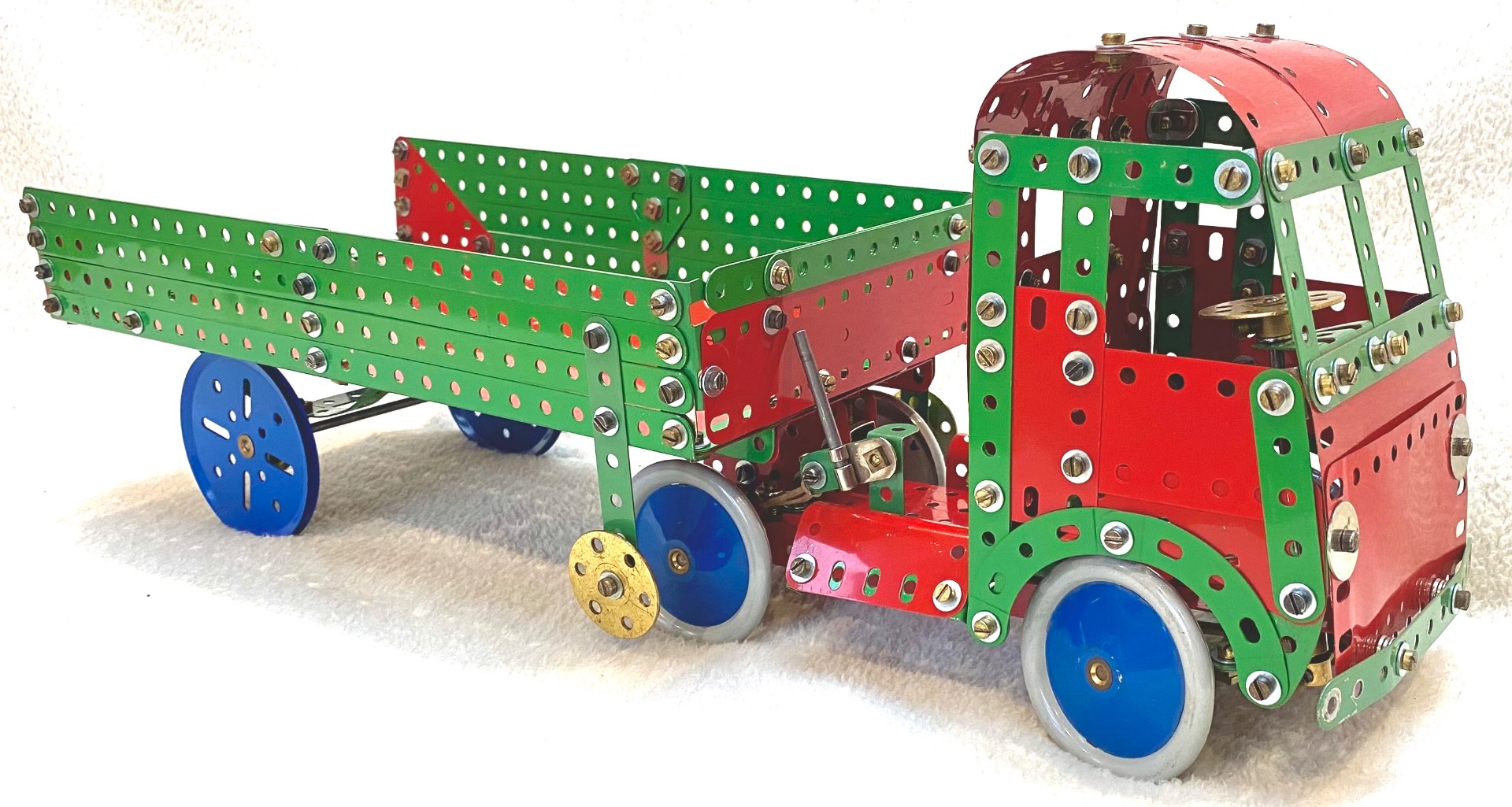

Model 8.12 from the 1956 Meccano set 8 book of models. Constructed, modified and motorised by Keith Edwards in November 2019 using mid red/mid green Meccano from the 1950s.
Based on model 7.6 from the 1954 Meccano outfit manual, but with numerous modifications.
